Electric tool Lithium Battery li-ion electric screwdriver 12V PCB board for 3S 12.6V 18650 power battery with DC connector

$5.60

This is The PCB for 3 series 12V or (12.6v) lithium ion battery pack with 10 to 15A Discharge current.
1) Over-charge protection voltage with single cell :4.25V±0.05V
2) Over-discharge protection voltage with single cell :2.50±0.25V
3) Over-current protection :40±5A
4)Charge current 1-2A
5) Functions : Over-charge protection ,over-discharge protection ,over-current protection ,
short circuit protection .High temperature detecting protection
​6)Dimension :34mm*33mm*12mm

2000 in stock

Description

breif instruction
This is The PCB for 3 series 12V or (12.6v) lithium ion battery pack with 10 to 15A Discharge current.
1) Over-charge protection voltage with single cell :4.25V±0.05V
2) Over-discharge protection voltage with single cell :2.50±0.25V
3) Over-current protection :40±5A
4)Charge current 1-2A
5) Functions : Over-charge protection ,over-discharge protection ,over-current protection ,
short circuit protection .High temperature detecting protection
​6)Dimension :34mm*33mm*12mm

Item Content Specification
Voltage Charging voltage DC 12.6V CC/CV
Balance voltage with single cell
Current Balance current for single cell
Current consumption with single cell less than 15 uA
Max constant charge current 0~15A
Max constant Discharge current 0~15A
Over-charge Protection Over-charge detection votlage 4.25V± 0.025V
Over-charge detection delay times 0.8-1S
Over-charge release voltage 4.13± 0.05V
Over-Discharge Protection Over-Discharge detection votlage 2.8V±0.025V
Over-Discharge detection delay times 10~20mS
Over-charge release voltage 3.0± 0.01V
Over-Current Protection Over-Current detection votlage 0.1V
Over-Current detection current 25±2A
Over-Current detection delay time 5~20mS
Over-Current release condition Load off
Short circuit protection Detection condition External short
Release condition Load off
Temperature Operating temperature range -40~85 degree
Storage temperature range -40~125 degree
Dimension (L*W*T) 34*36 mm

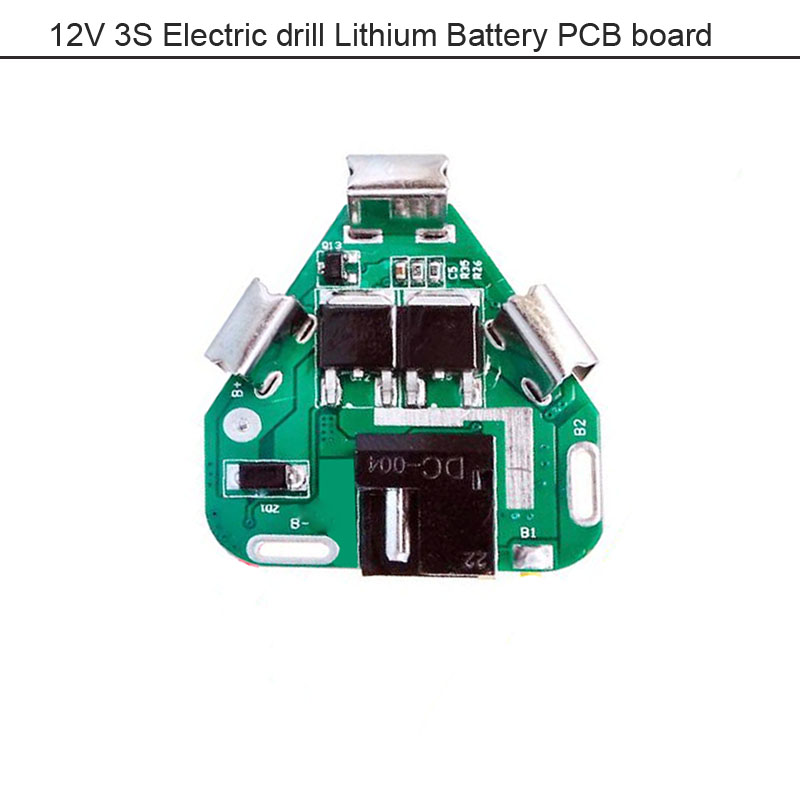

Photo Display

Connection diagram
