6S to 17S li ion or Lifepo4 smart BMS with CAN RS485 UART communication 60A 80A 100A 120A constant current for 36V 48V 60V BMS

$38.90$48.80

  • 1) Introduction and Features

    This is a Smart protection board specially designed for battery packs of.It can be applied to lithium batteries with different chemical properties, such as lithium ion, Li-polymer. Lithium iron phosphate, etc. The protection board has strong loading capacity and the maximum continuous discharge current can reach120A.

    • for 7S~17 series cell protection for Lithium Battery pack (for example 15*4.2=63V 12*3.65=43.8V Lifepo4 battery pack example ),client can select suitable type based on your battery characteristics
    • Dimension (L*W*T)=120*62*15mm
    • Various protection functions for charging and discharging ( over-charge , over-discharge ,high or Low temperature protection ,over-current protection , short circuit protection etc ) with double layers protection hardware and software protection .
    • Precise SOC calculation with SOC function of automatic learning
    • Automatically charge battery function or static balance function for the battery system

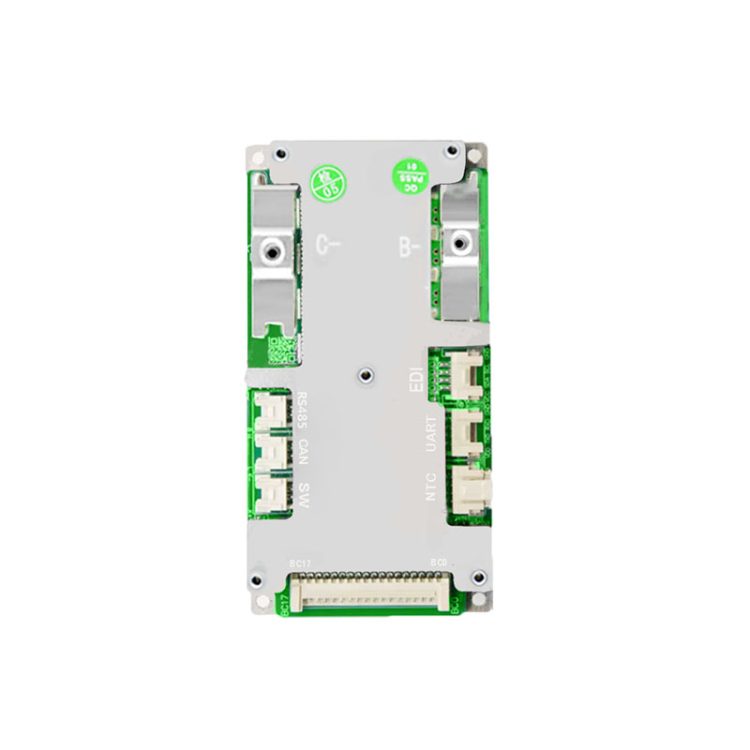

    • Equipped with Bluetooth module with UART communication ,CAN Communication , RS485 Communication
    • With TVS upgrade to prevent Mosfet shock in certain degree to provide more reliable current for your device
    • With 2 road external temperature detection  and one internal Temperature detection .
    • Please download connection diagram from this link kindly “BMS CONNECTION DIAGRAM”

  • 200USD~500USD:  coupon code:   20200806
     500USD~1000USD: coupon code : 20200807
     1000USD above:   Coupon Code :  20220808

Description

1) Introduction and Features

This is a Smart protection board specially designed for battery packs of.It can be applied to lithium batteries with different chemical properties, such as lithium ion, Li-polymer. Lithium iron phosphate, etc. The protection board has strong loading capacity and the maximum continuous discharge current can reach 120A.

  • for 7S~17 series cell protection for Lithium Battery pack (for example 15*4.2=63V 12*3.65=43.8V Lifepo4 battery pack example ),client can select suitable type based on your battery characteristics
  • Dimension (L*W*T)=120*62*10mm
  • Various protection functions for charging and discharging ( over-charge , over-discharge ,high or Low temperature protection ,over-current protection , short circuit protection etc ) with double layers protection hardware and software protection .
  • Precise SOC calculation with SOC function of automatic learning
  • Automatically charge battery function or static balance function for the battery system
  • Equipped with Bluetooth module with UART communication ,CAN Communication , RS485 Communication
  • With TVS upgrade to prevent Mosfet shock in certain degree to provide more reliable current for your device
  • With 2 road external temperature detection  and one internal Temperature detection .
  • About Balance ( if adds this active Balancer with BMS , it can automatically keep your battery with excellent consistency all the time !!!)

APP Display and parameters Pages

Mobile APP display
24V 36V 48V 60V Li ion or Lifepo4 smart BMS with 80A 100A 120A constant current

Notice of connection  :

A. Firstly ,Please connect bold wires from B- port of the BMS to the negative port of the battery pack .(B- wire should be as short as possible ) ,then connect these voltage detection wires (Please take off these wires from the BMS before connecting these wires to the battery to avoid any connection mistakes )

B. Second ,Please start connect these balance wires to the Battery system from BC0 ,Black thin wire should be connected to the battery negative , and the second wire -white wire BC1 should be connect to the positive port of the first series cell . BC2  should connect to the positive port of second series cell ,and BC3 wire to the third cell’s positive ….connection in this way in order one by one till to the last cell postive port

C. Third . After connection of these balance wires finished , please measure connector voltage from each Neighbouring wires ,the voltage between each neighbouring wires for Li ion battery should be less than 4V and for Lifepo4 Battery should be less than 3.5V ,after confirmation of these wires connection order , you can plug cable connector into the BMS .–wrong connection order will damage our BMS surely . please be carefully with this step .

D. Finally , connect C- wire as negative of charge and discharge , B+ wire as positive of charge and discharge , those wires should

use bold wire to make connection for large current distribution purpose . then please comparing the voltage from the BMS and voltage directly from the Battery to see if they are the same or not . if they are the same value . your connection is correct , otherwise terrible things will happend !!!
