8~120V Li Ion or LiFepo4 Battery Power indicator for 12V 24V 48V 60V 72V Lithium battery

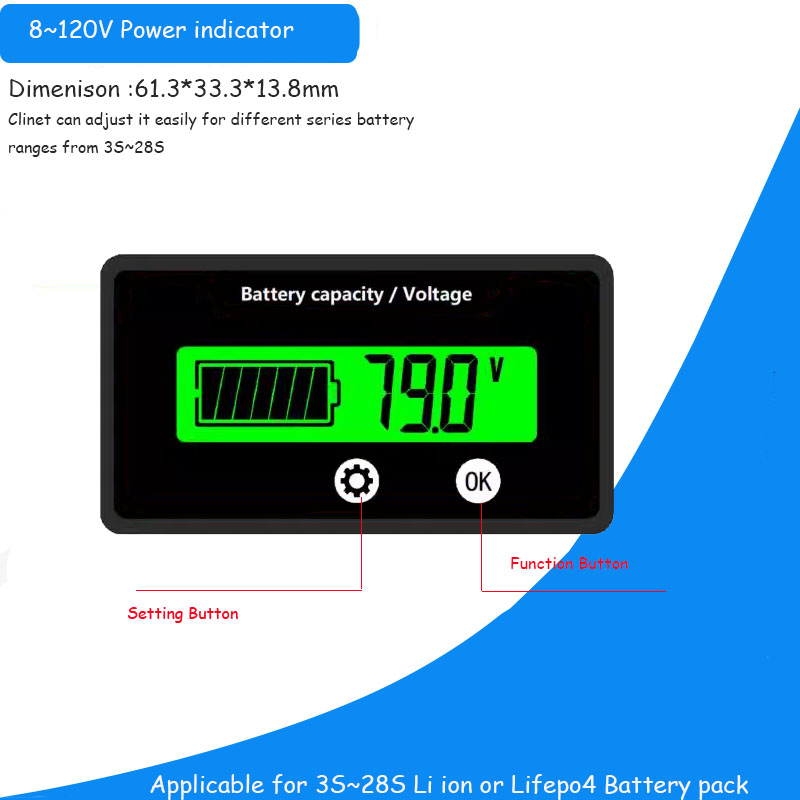

Application :This is  Power indicators Panel can be widely applied on 3S to 28S lithium ion or Lifepo4  Battery pack . it features on small size :L*W*T=61.3*33.3*13.8mm and precisive  voltage and current indicating  ability .Client can adjust

it for different series cell application based on your exactly application ranges from 3S~28S battery

Features and characteristics :

-Support parameters adjustment by users

— Ultra Lower power consumption with design .

– wide range of input voltage

– with reversed connection methods

– suitable for 3S ~28S li ion or lifepo4 battery application

Display Methods 🙁 such below display methods can be adjusted )

— Display Power percentage and voltage value (switch it by pressing button on the Power indicator )

—Display power percentage only and does not display voltage value

—Display voltage value only and does not display power percentage

–Power percentage and voltage display alternatively and automatically with 3 seconds

H1-Battery type and series setting   H2: Bottom  limit value setting of power percentage  H3 Top Limit value setting of power percentage ,  H4 Auto delay time setting  H5 : Display method setting .  H6: Bottom alarm value setting  H7 :Top Alarm limit value setting .

Remarks :

1) the setting content will be displayed once the Power indicator connected to the battery so as to confirm the setting parameters and functions .

2) in order to distinguish the “default value ” and ” Customized value “, when you select H-, the H2 and H3 will turn off automatically . ( the symbol of 2 and 3 will not display )，in contrary ,when selects custom function ,H1 will not display

3) When make customization : You need to set the bottom limitation value of H2 and Top limitation value of H3.

As for details custom instructions , please email me via this email  to get it : james@lithiumbatterypcb.com

Transaction terms :
1) Shipment time : once received your order ,we will proceed it quickly within 3~4 working days without problems .order can be cancled within these days ,otherwise we will reject to cancle the order ,because our items can not get back when in the process of shipment . we will inform our buyer if  there is a stock problems with the order and arrange a properly agreenment on the shipment schedule by email .

2) Shipment Methods : Client can choose suitable shipment methods based on your demand ,Post air parcel service or Express service , we will ship all orders strictly in according to the selected shipment methods by our customer . normally , Post parcel shipment time takes 7~60days depends on different countries serivce . and express takes 2~15days to the destination normally .

3) About Tracking number : Tracking number will be uploaded and will be informed by the registered email on each Friday ,please pay attention to your email later on for the tracking number update .

4) Quality Service : we will take a full responsibility for any defect product caused by our design and production problems ,warranty time is 12 months since the shipment date . but for any defect product caused by any wrong or slavery application from customers . we will not take the responsibility for that , because for this BMS product ,it do need some skills to make installation . please consult us in advance if you are not clearly with bms connection in the hope of avoid any mistakes of connection . if Buyer damaged the BMS , we can offer the free repairing service to our client , but client should take care of shipment cost .please know it kindly in advance . thanks

Please send email to this address for any questions james@lithiumbatterypcb.com, we will give you reply within 12hours without problems .
