20S or 21S Li ion or Lifepo4 Battery Smart Bluetooth BMS with 80A constant current for 72V or 60V battery Pack

$49.90$52.60

  • 20S or 21S  cell protection for Lithium Battery pack (15*4.2=63V 12*3.65=43.8V Lifepo4 battery pack example ),client can select suitable type based on your battery characteristics

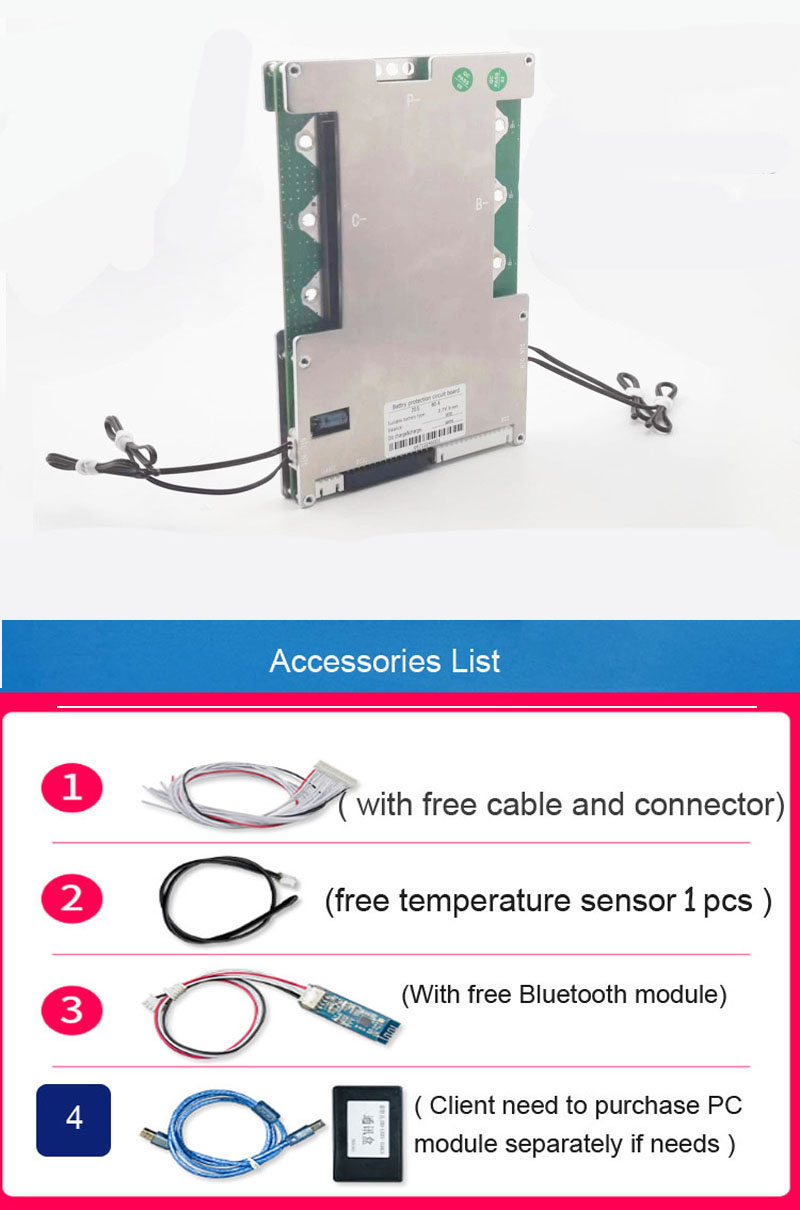

  • Dimension (L*W*T)=180*110*15mm
  • Various protection functions for charging and discharging ( over-charge , over-discharge ,high or Low temperature protection ,over-current protection , short circuit protection etc ) with double layers protection hardware and software protection .
  • Precise SOC calculation with SOC function of automatic learning
  • Equipped with Bluetooth module with UART communication which can enable the user to view battery information on our APP or Computer software which can be provided by us .client can use the PC software to set the protection parameters flexibly,client can download software with our appointed link .
  • With TVS upgrade to prevent Mosfet shock in certain degree to provide more reliable current for your device
  • With UART Communication functions .
  • With 4 road external temperature detection  and one internal Temperature detection
  • 7) In order to support our custom with certain quantity , our client can use this coupon code to get better cost :
         200USD~500USD:  coupon code:   20200806
         500USD~1000USD: coupon code : 20200807
         1000USD above:   Coupon Code :  20220808

Description

1) Introduction and Features

This is a Smart protection board specially designed for battery packs of.It can be applied to lithium batteries with different chemical properties, such as lithium ion, Li-polymer. Lithium iron phosphate, etc. The protection board has strong loading capacity and the maximum continuous discharge current can reach 80A.

  • 20S or 21S  cell protection for Lithium Battery pack (15*4.2=63V 12*3.65=43.8V Lifepo4 battery pack example ),client can select suitable type based on your battery characteristics
  • Dimension (L*W*T)=180*110*15mm
  • Various protection functions for charging and discharging ( over-charge , over-discharge ,high or Low temperature protection ,over-current protection , short circuit protection etc ) with double layers protection hardware and software protection .
  • Precise SOC calculation with SOC function of automatic learning
  • Equipped with Bluetooth module with UART communication which can enable the user to view battery information on our APP or Computer software which can be provided by us .client can use the PC software to set the protection parameters flexibly,client can download software with our appointed link .
  • With TVS upgrade to prevent Mosfet shock in certain degree to provide more reliable current for your device
  • With UART Communication functions .
  • With 4 road external temperature detection  and one internal Temperature detection .
Specification reference for different cells with different chemistry materials :

 Default Parameters setting :

Specification as below is our defaul setting value , clinet can use the PC module to set them on yourside without

problems .if you want us to set it , you can leave a message to us based on your battery specification without proble

20S 21S 72V or 60V Li ion or Lifepo4 Battery BMS



Mobile APP display



FAQ:

1) Where I can get the software and connection diagram ?

As for this BMS connection and software  ,You can download our arranged Link without problems .

2) Q: I am a fresh person who bigin the battery assembly without pack experience .how can I assembly it with your instructions .

  If the user has no skills of making battery connection , do not buy it ,unless you find any person who can undersnd our connection diagram  wrong connection can damage our BMS ,it will be our nightmare .  we can not use our product for your experiment purpose , Battery assembly
needs sufficiently skill,otherwise it will be big problem for both of us . also it is difficut to make detail guildelines on how to assembley the Battery for us .
3): About feedback :
    5stars feeback are welcome , but if there is any problems with our product , please cotact us in advance before lodging dispute , we would like to solve any problems in a friendly ways . please help us and we will help you mutually without any problems , thanks in advance for all clients from aboa

Shipment :

Client can choose suitable shipment methods based on your demand ,Post air parcel service aliexpress standard service or Express service will all be available, we will ship all orders strictly in according to the selected shipment methods by our customer . normally , Post parcel shipment time takes 7~60days depends on different countries serivce . and express takes 2~15days to the destination normally .

for the shipment ,client should afford the import tax or duty cost and take charge of custom clearance with our support positively ,as a seller , we wont afford any extra duty cost on buyer side if the buyer custom need to charge it .

Quality warranty:

For our Product , we made twice full inspection before the delivery so as to make sure to low the quality risk in a very lower level .we will take a full responsibility for any defect product caused by our design and production problems ,warranty time is 12 months since the shipment date . but for any defect product caused by any wrong or slavery application from customers . we will not take the responsibility for that , because for this BMS product ,it do need some skills to make installation . please consult us in advance if you are not clearly with bms connection in the hope of avoid any mistakes of connection . if Buyer damaged the BMS , we can offer the free repairing service to our client , but client should take care of shipment cost .please know it kindly in advance . thank

Problems Shooting :

when clinent found there is any problems with our product or with shipment , quantity less ,product damage or other problems with our transaction , please inform us in advance to quickly find a solution for both side before lodge the dispute . Business needs mutual support , let solve any problems in friendly understanding ways .

Feedback:

You satisfaction and positive feedback is very importand to us. Pleae leave positive feedback and 5 stars if you are satisfied with our

items and services.If you have any problems with our itmes or services, please feel free to contact us first before you leave negative feedback. We will do our best to solve any problems and provide you with the best customer services.

Additional information

Weight N/A
Specification selection

20S li ion 80A, 21S Li ion 80A, 20S Lifepo4 80A, 21S Lifepo4 80A, PC Module
