4S 16.8V or 14.8V Electric drill Lithium Ion PCB board with Max 18A discharge current

$7.80

This is The PCB for 4series Lithium ion battery with 18A constant working current
Dimension : L*W*H= Max 34*34mm

1) With highly precision degree of detecting each cell’s voltage ;

2) With three phases over-current detectiong functions .

3) It will manage the discharge and charge through the MOSFET

4) Wide working temperature scope from -40-85 degree

5) Low self power consumption
6) Dimension :34*34mm

9998 in stock

Description

breif instruction
This is The PCB for 4series Lithium ion battery with 18A constant working current
Dimension : L*W*H= Max 34*34mm

1) With highly precision degree of detecting each cell’s voltage ;

2) With three phases over-current detectiong functions .

3) It will manage the discharge and charge through the MOSFET

4) Wide working temperature scope from -40-85 degree

5) Low self power consumption :

Item Content Specification
Voltage Charging voltage DC16.8V CC/CV
Balance voltage with single cell
Current Balance current for single cell
Current consumption with single cell less than 30uA±5uA during work status
Max constant charge current 0~18A
Max constant Discharge current 0~18A
Over-charge Protection Over-charge detection votlage 4.2V± 0.05V
Over-charge detection delay times 20mS
Over-charge release voltage 4.13± 0.05V
Over-Discharge Protection Over-Discharge detection votlage 2.8V±0.025V
Over-Discharge detection delay times 20mS
Over-charge release voltage 3.0± 0.01V
Over-Current Protection Over-Current detection votlage 0.6V
Over-Current detection current 30±2A
Over-Current detection delay time 300±20mS
Over-Current release condition Load off
Short circuit protection Detection condition External short
Release condition Load off
Temperature Operating temperature range -40~85 degree
Storage temperature range -40~125 degree
Dimension (L*W*T) 34*34 mm

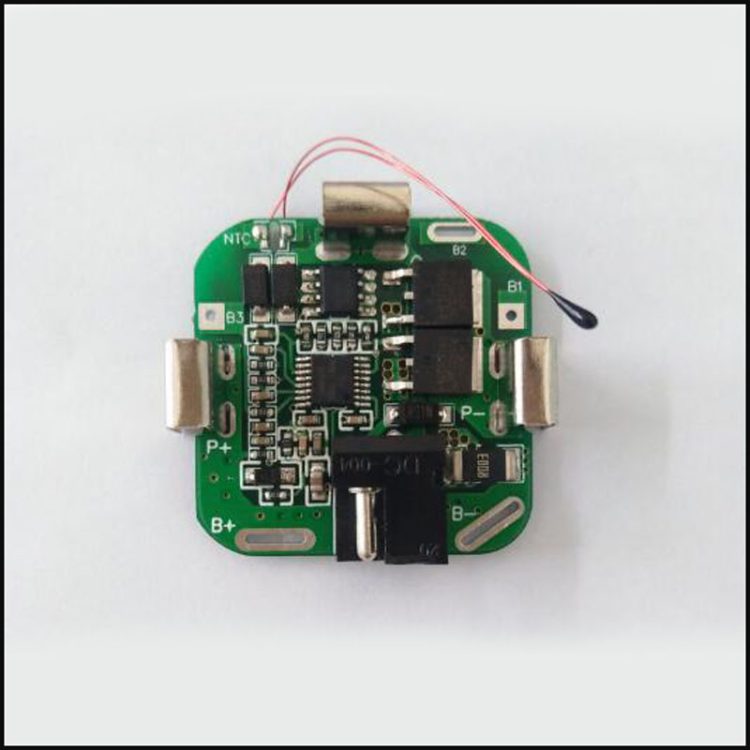

Photo Display
