3S 12V and 12.6V electric tool drill battery PCB for electric tool battery PCB with 10 to 15A discharge current

$5.60 $5.00

2000 in stock

Description

breif instruction
This is The PCB for 3 series 12V or (12.6v) lithium ion battery pack with 10 to 15A Discharge current.

1) Over-charge protection voltage with single cell :4.2V±0.05V

2) Over-discharge protection voltage with single cell :2.80±0.25V

3) Over-current protection :25±3A

4)Charge current 1-2A

5) Functions : Over-charge protection ,over-discharge protection ,over-current protection ,

short circuit protection .High temperature detecting protection

Item Content Specification
Voltage Charging voltage DC 12.6V CC/CV
Balance voltage with single cell
Current Balance current for single cell
Current consumption with single cell less than 15 uA
Max constant charge current 0~12A
Max constant Discharge current 0~12A
Over-charge Protection Over-charge detection votlage 4.2V± 0.025V
Over-charge detection delay times 0.8-1S
Over-charge release voltage 4.13± 0.025V
Over-Discharge Protection Over-Discharge detection votlage 2.8V±0.08V
Over-Discharge detection delay times 20mS
Over-Discharge release voltage 3.0± 0.01V
Over-Current Protection Over-Current detection votlage 0.1V
Over-Current detection current 25±3A
Over-Current detection delay time 5~20mS
Over-Current release condition Load off
Short circuit protection Detection condition External short
Release condition Load off
Temperature Operating temperature range -40~85 degree
Storage temperature range -40~125 degree
Dimension (L*W*T) 34mm*36mm

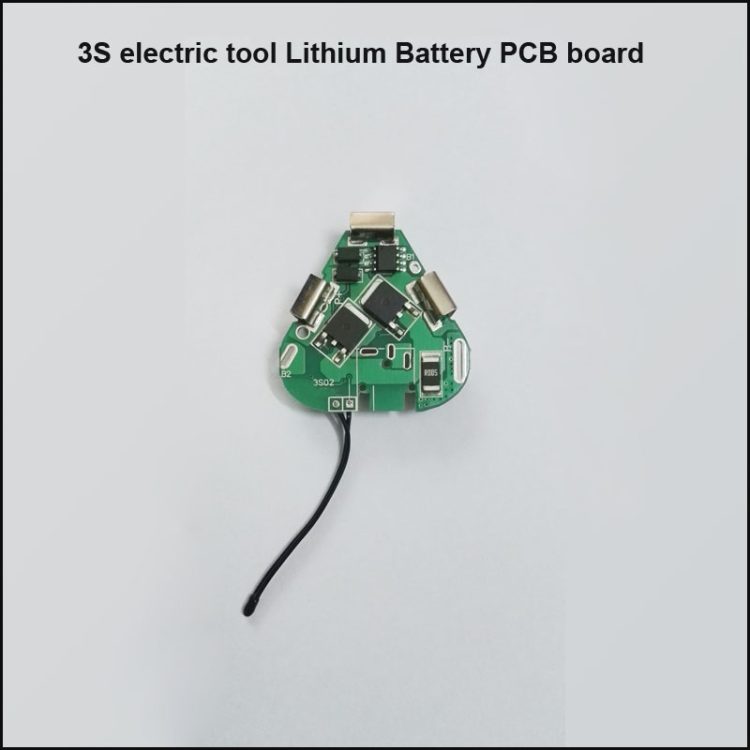

Photo Display

Connection diagram
Connection diagram

1)Do not apply the PCB which beyonds the specified criterias as above :

2)Sometime , the battery may not discharge when connected this PCB , please connect it to the charge and it can recover to the normal

status .

3)The PCB may not work normarly When Mixing cells which were over-discharged or over-charged ,

4) Do not shock this PCB with big static even though the PCB has been designed with anti-stastic protection function.
