13S 48V Li ion battery BMS with 30A constant current and On off switch Balance function for electric bike or Bicycle battery Rear rack box or others

$22.30

 This is a high end protection circuit board developed by us by considering all factors which would has

possiblity to damge the BMS . it has full set of protection than other normal PCB board . the Dimension of

this Board is :42*90*9mm , which can be applied widely on Electric bike or Electric scooter vehicles etc or

other 13S 48V Li ion Battery field . it has the different charge and discharge port with 5A rated Constant

charge current .

1) This Board has adopted with integrated chip managment solution with less quality risk and more stable working performance

2) Working current is 30A constant current ,and this Board can be made with 50A constant current , please contact us if needs

3) With weak electricity switch to control the discharge to prevent the drain of current during work-off time ( this BMS’s On/OFF switch

will cut-off the power consumption and output from all connection port , it will leave your battery at good status during work off time without

power consumption)

4) With charge port protection function ,no voltage from the charge port  when disconnected with charge , O voltage output from

the charge port .and with reverse connection protection function when user mixed the polarity of the charger ,it would not damage the

BMS

5) With Balance function and over-charge ,over-discharge , over-current protection ,short protection ,High temperature protection function ,

with 5V USB connection connector on the BMS .

6) with MCU   controlling processing for charge current  limitation .( when the current exceeded the rated charge current , the BMS will cut

off the charge so as to prevent any wrong charger to damge the BMS accident .

Clear
SKU: LLT13S0301V2 Category:

Description

Briefly descriptions

 This is a high end protection circuit board developed by us by considering all factors which would has

possiblity to damge the BMS . it has full set of protection than other normal PCB board . the Dimension of

this Board is :42*90*9mm , which can be applied widely on Electric bike or Electric scooter vehicles etc or

other 13S 48V Li ion Battery field . it has the different charge and discharge port with 5A rated Constant

charge current .

Features and characteristics:

1) This Board has adopted with integrated chip managment solution with less quality risk and more stable working performance

2) Working current is 30A constant current ,and this Board can be made with 50A constant current , please contact us if needs

3) With weak electricity switch to control the discharge to prevent the drain of current during work-off time ( this BMS’s On/OFF switch

will cut-off the power consumption and output from all connection port , it will leave your battery at good status during work off time without

power consumption)

4) With charge port protection function ,no voltage from the charge port  when disconnected with charge , O voltage output from

the charge port .and with reverse connection protection function when user mixed the polarity of the charger ,it would not damage the

BMS

5) With Balance function and over-charge ,over-discharge , over-current protection ,short protection ,High temperature protection function ,

with 5V USB connection connector on the BMS .

6) with MCU   controlling processing for charge current  limitation .( when the current exceeded the rated charge current , the BMS will cut

off the charge so as to prevent any wrong charger to damge the BMS accident .

Specification

Items             Content   Parameters
Charge voltage CC to CV 54.6V
Over charge Protection Over charge detection voltage with single cell



4.25±0.025V
Over charge detection delay time 1±0.5S
Over charge release voltage with single cell 4.05±0.05V
Over discharge protection Over discharge detection voltage 2.75±0.08V
Over discharge detection delay time 1±0.5S
Over discharge release voltage 2.8±0.10V
Over current protection



Over current detection current 90A±10A
Over-current detection delay time 400±50mS
Short current protection Short circuit detection current 250±50A
Short circuit detection delay time 100-600uS
Over current recovery



Over current & short current release Load disconnection
Constant current Constant charge current 5A
Constant  discharge current 30A (Can also be made with 50A current )
Balance Balance start voltage  4.18V
Balance current  40mA~50mA
High temperature protection  Over-charge protection temperature degree



70±5 degree
Size (L*W*T)mm  42*90*9mm
Others Additional Functions  With On/OFF switch , High temperature detection probe , and Charge port protection function ,with 5V USB connector and power indicator connector

Photo display

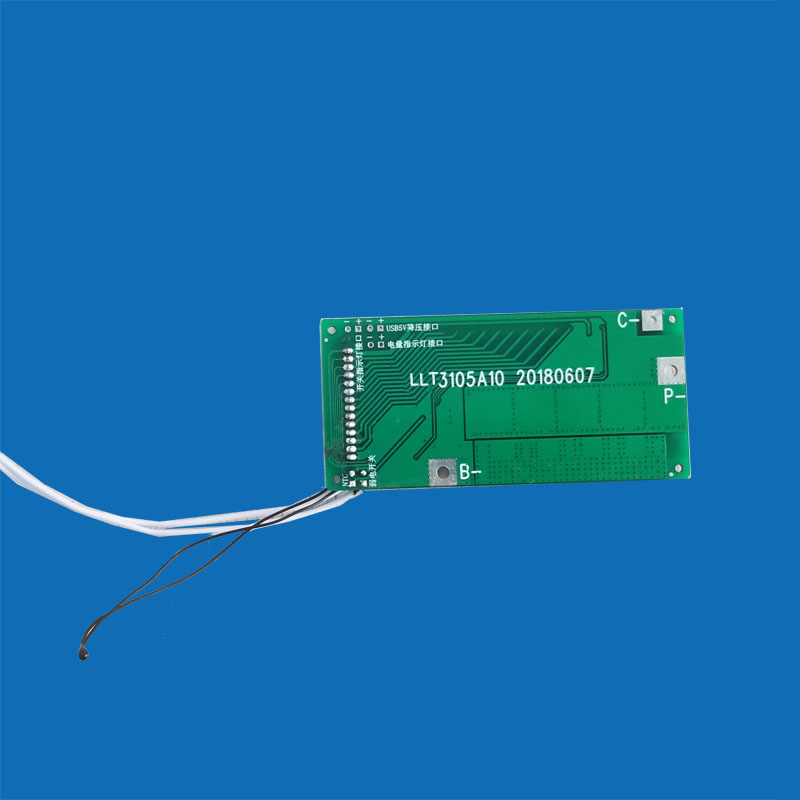

48V Li ion Battery Protection circuit board with 30A current with ON off switch for electric rear rack battery BMS

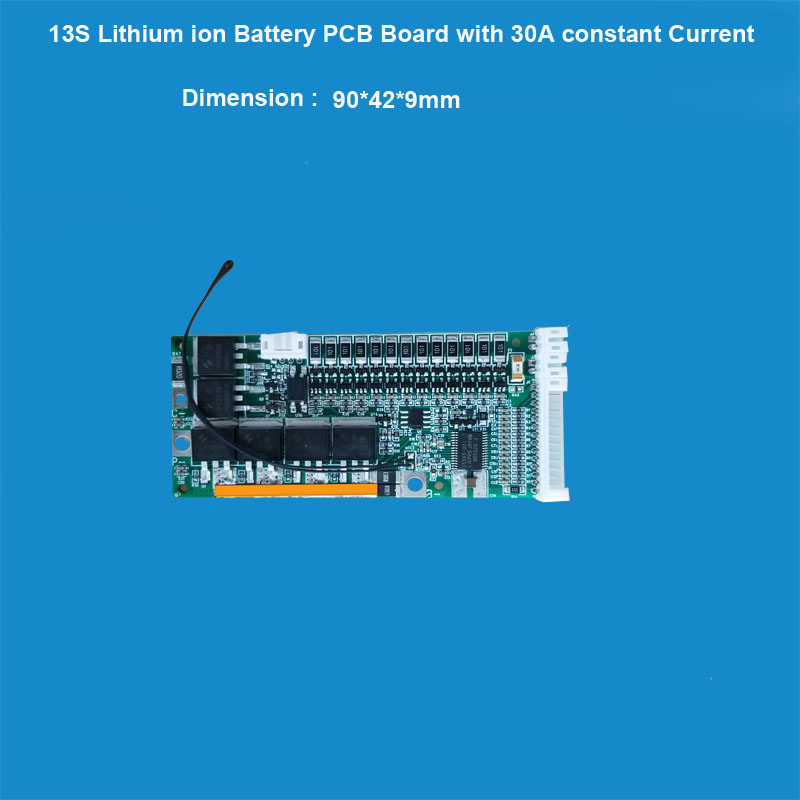

13S li ion 54.6V Battery PCB board
