5S 18V and 21V lithium ion battery protection circuit board PCB and BMS with 20A constant discharge current

$13.20

This is The PCB for 5series Lithium ion battery with 20A constant working current

Dimension : L*W*H= Max 55*50*8mm

Features and characteristics :

1) With highly precision degree of detecting each cell's voltage ;

2) With three phases over-current detectiong functions .

3) It will manage the discharge and charge through the MOSFET

4) Wide working temperature scope from -40-85 degree

5) Low self power consumption :

9998 in stock

Description

breif instruction
This is The PCB for 5series Lithium ion battery with 20A constant working current

Dimension : L*W*H= Max 55*50*8mm

Features and characteristics :

1) With highly precision degree of detecting each cell’s voltage ;

2) With three phases over-current detectiong functions .

3) It will manage the discharge and charge through the MOSFET

4) Wide working temperature scope from -40-85 degree

5) Low self power consumption :

Item Content Specification
Voltage Charging voltage DC 21V CC/CV
Balance voltage with single cell 4.185±50mV
Current Balance current for single cell 80mA± 10mA
Current consumption with single cell less than 15 uA
Max constant charge current 20A
Max constant Discharge current 20A
Over-charge Protection Over-charge detection votlage 4.25V± 0.025V
Over-charge detection delay times 0.8-1S
Over-charge release voltage 4.15± 0.05V
Over-Discharge Protection Over-Discharge detection votlage 2.8V±0.08V
Over-Discharge detection delay times 10~300mS
Over-charge release voltage 3.0± 0.01V
Over-Current Protection Over-Current detection votlage 0.6V
Over-Current detection current 40±5A
Over-Current detection delay time 5~20mS
Over-Current release condition Load off
Short circuit protection Detection condition External short
Release condition Load off
Temperature Operating temperature range -40~85 degree
Storage temperature range -40~125 degree
Dimension (L*W*T) 55*50*08 mm

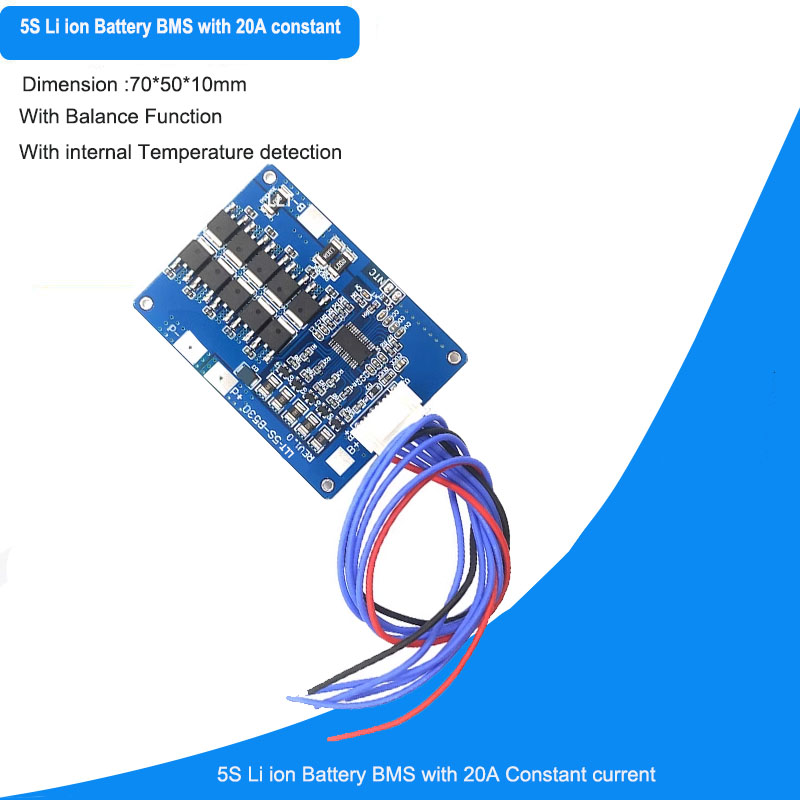

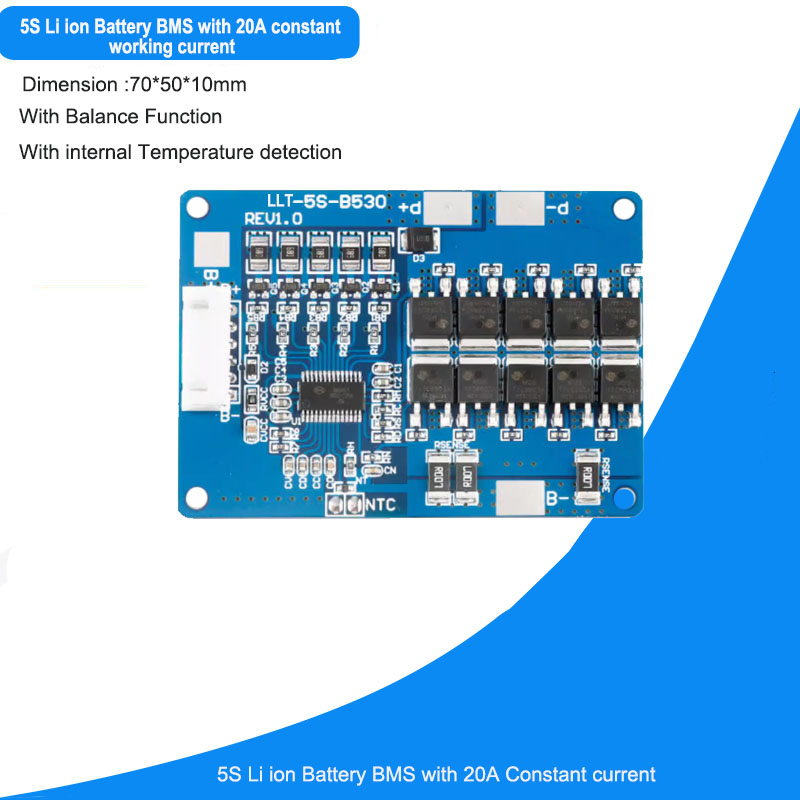

Photo Display

Connection diagram
Connection diagram

1)Do not apply the PCB which beyonds the specified criterias as above :

2)Sometime , the battery may not discharge when connected this PCB , please connect it to the charge and it can recover to the normal

status .

3)The PCB may not work normarly When Mixing cells which were over-discharged or over-charged ,

4) Do not shock this PCB with big static even though the PCB has been designed with anti-stastic protection function.
