6S 7S 8S 10S 25.2v 24V 29.4V 29.2V 42V Li ion or Lifepo4 Battery Smart BMS with 20A 30A 40A 60A constant current for android or IOS APP

$38.20$44.60

1) Application:this smart BMS can work for 6S 7S 8S 9S 10S  Lithium ion or Lifepo4 Battery ,client can choose based on your battery chemistry features
2) Current : constant current of this version BMS can be made with 20A to 60A in accoridng to the different demand
3) Dimension: :Max 108*65*10mm (for less than 30A current ,and Max108*65*15mm for more than 30A Current

4) Our BMS will include a free connection cable with connector and with a Bluetooth Communication module . client can choose the PC Communication module separately based on your demand by selecting it from the dropdown list
4) Functions : except basic protection function , this BMS has ON/OFF switch ,PC and APP communication function.
5) Communication type :UART
6) With three temperature detection channels for this BMS
7) In order to support our custom with certain quantity , our client can use this coupon code to get better cost :
     200USD~500USD:  coupon code:   20200806
     500USD~1000USD: coupon code : 20200807
     1000USD above:   Coupon Code :  20220808

7) We will ship out within 2~3 working days as we promised in according to client selected shipment methods strictly for few pcs sample orders , we will advise buyer the tracking number once it has been shipped , please know it kindly in advance

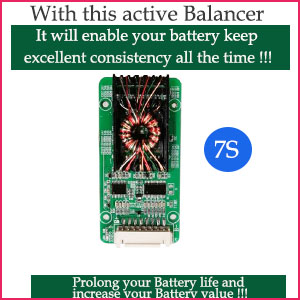

9) About Balance ( if adds this active Balancer with BMS , it can automatically keep your battery with excellent consistency all the time !!!)

Description

Notes:all of our Smart BMS with Bluetooth function will equip a Bluetooth Communication module only , and buyer can choose the PC communication Module separately if needs . please know it kindly in advance ,all orders will be dispatched within 1~3 days without problems .
Briefly Introductions :
1) Characteristics : This is a smart BMS with UART Bluetooth  Communication function with our Android or IOS
APP , also can communicate with PC computer with our PC software through connection of our PC
2) Widely Application scope  : this BMS can work with 6S 7S 8S 9S 10S Lithium ion or Lifepo4 Battery  with slightly modification with the support of APP and PC software .
3) With the same charge and discharge port and balance functions
4) with highly  precision degree on SOC, SOH ,voltage and current metering
5) With full set protection functions :
This BMS has applied with high quality IC chip specially for lithium battery protection purpose .highly detection
precision degree on over-charge,over-discharge,voltage balancing ,and with detection on wires disconnection functions,with three layers of over-discharge and over-current detections and delay times in detecting process.( Over-current 1,over current 2,short cicircuit protection ) . short-circuit of charging port ,with two layers protection against over-voltage when charging :
6) with Two  temperature detection channel
7) This BMS has installed a switch  connector for ON/OFF button connection .
And we can design and produce Battery protection circuit board in according to client’s demand with certain
reasonable order quantity .
9) About Balance ( if adds this active Balancer with BMS , it can automatically keep your battery with excellent consistency all the time !!!)
Product and accessories List :

6S Li ion or 7S 24V Battery 10s 36V smart BMS with 20A to 60A constant current

Defaults Protection parameters with our BMS ( as for the protection parameters , client can set it via our APP or

PC software afterwards if needs ) , the below specification is our default parameters .

Specification of 6S 7S 8S 10S smart Bluetooth BMS with 20A to 60A constant current

A.Mobile Phone APP Display and how to set parameters via APP software with the Bluetooth  Communication module as below.

Bluetooth Module

Our Smart BMS support two types of Phone system android or IOS system

B .With the PC communication Module as Below ,we can set parameter on PC software like this :

PC communication module

Computer software dispaly

Photo display
6S~10S (less than 30A) version:

How to make correct BMS connection ?

Notice of connection  :

A. Firstly ,Please connect bold wires from B- port of the BMS to the negative port of the battery pack .(B- wire should be as short as possible ) ,then connect these voltage detection wires (Please take off these wires from the BMS before connecting these wires to the battery to avoid any connection mistakes )

B. Second ,Please start connect these balance wires to the Battery system from BC0 ,Black thin wire should be connected to the battery negative , and the second wire -white wire BC1 should be connect to the positive port of the first series cell . BC2  should connect to the positive port of second series cell ,and BC3 wire to the third cell’s positive ….connection in this way in order one by one till to the last cell postive port

C. Third . After connection of these balance wires finished , please measure connector voltage from each Neighbouring wires ,the voltage between each neighbouring wires for Li ion battery should be less than 4V and for Lifepo4 Battery should be less than 3.5V ,after confirmation of these wires connection order , you can plug cable connector into the BMS .–wrong connection order will damage our BMS surely . please be carefully with this step .

D. Finally , connect C- wire as negative of charge and discharge , B+ wire as positive of charge and discharge , those wires should

use bold wire to make connection for large current distribution purpose . then please comparing the voltage from the BMS and voltage directly from the Battery to see if they are the same or not . if they are the same value . your connection is correct , otherwise terrible things will happend !!!



Our BMS advantages VS other company’s

Transaction terms :
1) Shipment time : once received your order ,we will proceed it quickly within 3~4 working days without problems .order can be cancled within these days ,otherwise we will reject to cancle the order ,because our items can not get back when in the process of shipment . we will inform our buyer if  there is a stock problems with the order and arrange a properly agreenment on the shipment schedule by email .

2) Shipment Methods : Client can choose suitable shipment methods based on your demand ,Post air parcel service or Express service , we will ship all orders strictly in according to the selected shipment methods by our customer . normally , Post parcel shipment time takes 7~60days depends on different countries serivce . and express takes 2~15days to the destination normally .

3) About Tracking number : Tracking number will be uploaded and will be informed by the registered email on each Friday ,please pay attention to your email later on for the tracking number update .

4) Quality Service : we will take a full responsibility for any defect product caused by our design and production problems ,warranty time is 12 months since the shipment date . but for any defect product caused by any wrong or slavery application from customers . we will not take the responsibility for that , because for this BMS product ,it do need some skills to make installation . please consult us in advance if you are not clearly with bms connection in the hope of avoid any mistakes of connection . if Buyer damaged the BMS , we can offer the free repairing service to our client , but client should take care of shipment cost .please know it kindly in advance . thanks

Please send email to this address for any questions james@lithiumbatterypcb.com, we will give you reply within 12hours without problems .



Additional information

Weight 0.2 kg
Dimensions 13 × 10 × 15 cm
Specification selection

6S li-ion 20A, 6S li-ion 30A, 6S li-ion 40A, 6S li-ion 60A, 6S Lifepo4 20A, 6S Lifepo4 30A, 6S Lifepo4 40A, 6S Lifepo4 60A, 7S Li ion 20A, 7S Li ion 30A, 7S Li ion 40A, 7S li ion 60A, 8S li-ion 20A, 8S li-ion 30A, 8S li-ion 40A, 8S li-ion 60A, 10S li-ion 20A, 10S li-ion 30A, 10S li-ion 40A, 10S li-ion 60A, 8S Lifepo4 20A, 8S Lifepo4 30A, 8S Lifepo4 40A, 8S Lifepo4 60A, PC Communication Module
