L180W 3S 4S 7S 8S 12S 14S 13S 48V 16S 60V 72V Lithium ion Battery charger with 2A to 7A constant current
$37.90 – $44.60
This high quality alloy type charger has such characteristic as belowing :

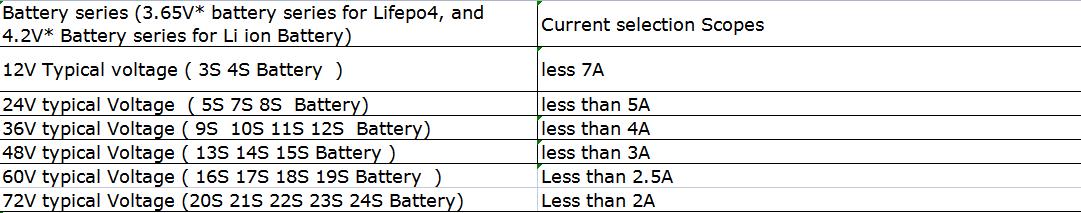

1. Application : For 3S~24S Li ion or Lifepo4 Battery with 3.5A~15A constant Charge current , client can leave a message with
your order for the customized voltage and current ,voltage selection scope 12.6V~87.6V and current should be as below ,by selecting ” Customized voltage and current ” from the specification drop list for the order placement .
Please just leave message with your order and send it by email like this example will be ok for us to prepare your order : For 6S Li ion Batteryr , current 58A , Inluput Plug : B (Eu) Output connector : No 8 Clip
If you want to set charge voltage which will be different with our default parameters , such as 4.0V for 6S Li ion Battery , the chareg voltage that you demand is 24V instead of 4.2*6S=25.2V , you can also leave a message with your order or send email to me ( James@lithiumbatterypcb.com) like this : 4.0V *6S=24V ,Input Plug : B( Eu ) Output Connector : No 8 Clip
then we can prepare strictly in according to your message without any problems .
Description
This high quality alloy type charger has such characteristic as belowing :
1. Application : For 3S~24S Li ion or Lifepo4 Battery with 3.5A~15A constant Charge current , client can leave a message with
your order for the customized voltage and current ,voltage selection scope 12.6V~87.6V and current should be as below ,by selecting ” Customized voltage and current ” from the specification drop list for the order placement .
Please just leave message with your order and send it by email like this example will be ok for us to prepare your order : For 6S Li ion Batteryr , current 58A , Inluput Plug : B (Eu) Output connector : No 8 Clip
If you want to set charge voltage which will be different with our default parameters , such as 4.0V for 6S Li ion Battery , the chareg voltage that you demand is 24V instead of 4.2*6S=25.2V , you can also leave a message with your order or send email to me ( James@lithiumbatterypcb.com) like this : 4.0V *6S=24V ,Input Plug : B( Eu ) Output Connector : No 8 Clip
then we can prepare strictly in according to your message without any problems .
2.AC power :100V~132V or 200V~240V ( AC plug will be shipped in according to client’s country demand based ib shipping address ,if you want to change the AC plug , please leave message to us )
4.Dimension :135*90*50mm
5. Weight :1.0kg
6.short-circuit protection,charger o/p current automatically when short-circuit.
7.overload protection:charger o/p current limited automatically when overload.
8.reverse polarity protection:it will shut down when the wire is connected,charge DC fuse or remove the fault.
9.2-stages charging mode: CC(constant current), CV(constant voltage) .
10.Excellent fan cooling technology enable your charger get away from any potential over-heating risk and make your charger works longer and
more stable .
11.Charging state:two LED display.
12.Fuses works to provide double protection from any external damages
13.All kinds of production has passed the CE certification.
14.Automatically cut-off : the charger cut-off automatically when the battery was fully charged ,
15.Efficiency: ≥96 %( full capacity)
7.overload protection:charger o/p current limited automatically when overload.
8.reverse polarity protection:it will shut down when the wire is connected,charge DC fuse or remove the fault.
9.2-stages charging mode: CC(constant current), CV(constant voltage) .
10.Excellent fan cooling technology enable your charger get away from any potential over-heating risk and make your charger works longer and
more stable .
11.Charging state:two LED display.
12.Fuses works to provide double protection from any external damages
13.All kinds of production has passed the CE certification.
14.Automatically cut-off : the charger cut-off automatically when the battery was fully charged ,
15.Efficiency: ≥96 %( full capacity)
1.To check if your local power supply conformsto charger input voltage 110 or 230V,then connect the charger system to a wall socket , if charger
has switched to OFF position ,it must be set to ON status .
2.LED1 (RED ) confirms AC power on an LED2 Green confirms if the charger connects well or not
3.Connect the plug or the DC output cord to battery terminals ,it indicates the charger is charging the battery when the red light turns on ,and
the battery will be fully charged when the battery was charged fully .
Notes : if the charger with a Relay for reverse polarity prouction , it does not have output voltage and current when the Charger AC power on
but disconnecting with the battery , it will have voltage an current output when it connects with battery , if the charger has a fuse instea of Relay
for reverse polarity protection , it has output once AC power on .
1. the phenomenon of sparking is normal when it connects to the battery because of high current
2. This charger is designed for charging lithium tupe batteries only
3. Avoid charging the wrong type battery
4. Always place the charger in well-ventilated and dry environments
5. The charger is designed with aluminum case as its heat sink , do not cover it to avoid the case from being overheated while charging
6. Do not disassemble charger ,take it to qualified service person when service or repair is required
1. Orders processed timely after the payment verification.
2. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
4. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
5. Delivery time depends on destination and other factors, If you don`t receive the item after 20 days, please contact us, We will track.
Additional information
| Weight | N/A |
|---|---|
| Specification selection | 3S Li ion 12.6V 7A, 4S Lifepo4 14.6V 7A, 4S Li ion 16.8V 7A, 5S Li ion 21V 7A, 5S Lifepo4 18.3V 7A, 6S Li ion 25.2V 5A, 6S Lifepo4 21.9V 5A, 7S Li ion 29.4V 5A, 8S Lifepo4 29.2V 5A, 8S Li ion 34V 5A, 10S Li ion 42V 4A, 12S Lifepo4 43.8V 4A, 12S Li ion 50.4V 3A, 13S Li ion 54.6V 3A, 14S Li ion 58.8V 3A, 15S Lifepo4 54.8V 3A, 15S Li ion 63V 2.5A, 16S Li ion 67.2V 2.5A, 16S Lifepo4 58.4V 3A, 17S Li ion 71.4V 2.5A, 17S Lifepo4 62V 2.5A, 18S Li ion 75.6V 2A, 20S Li ion 84V 2A, 20S Lifepo4 73V 2.5A, 21S li ion 88.2V 2A, 3S Li ion 12.6V 5A, 4S Li ion 16.8V 5A, 4S Lifepo4 14.6V 5A, 24S Lifepo4 87.6V 2A, Customized voltage and value |
