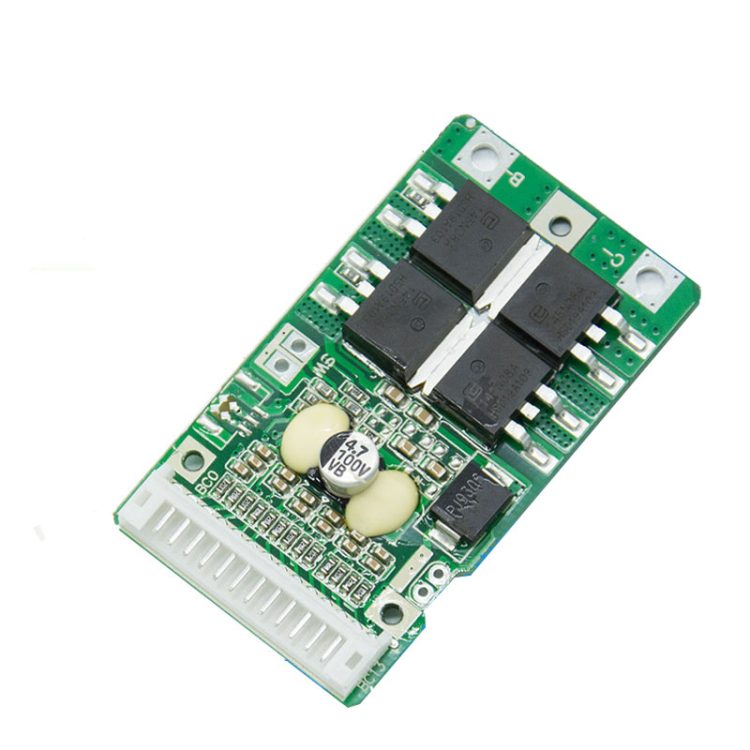

13S 48V 54.6V Lithium Ion battery PCB board with 15A constant discharge current for e bike 18650 battery

$14.30

This BMS was designed specially for 48V 13S Li ion battery work for electric bike or other vehicle power battery ,which can fit for various type of lithium ion chemistry such as :NCM battery ,lithium polymer battery and other li ion battery etc .

Features And Characteristics :

  •  For 13S Li ion 48V  Lithium ion Battery application
  • With full set of protection functions : such as Over-charge and over-discharge protection , over-current protectiton , short circuit protection ,temperature protection ( can be added if needs)
  •  with integrated management solution to provide stable performance
  • Constant current : 15A same charge and discharge port
  • can Add on Off switch on this BMS
  • Dimension :59*33*15mm
Clear

Description

This BMS was designed specially for 48V 13S Li ion battery work for electric bike or other vehicle power battery ,which can fit for various type of lithium ion chemistry such as :NCM battery ,lithium polymer battery and other li ion battery etc .

Features And Characteristics :

  •  For 13S Li ion 48V  Lithium ion Battery application
  • With full set of protection functions : such as Over-charge and over-discharge protection , over-current protectiton , short circuit protection ,temperature protection ( can be added if needs)
  •  with integrated management solution to provide stable performance
  • Constant current : 15A same charge and discharge port
  • can Add on Off switch on this BMS

Specification reference:



Connection instructions:

Please contact us for connection diagram if you do not know how to connect it properly , we will give you full support without problems .

Transaction terms :
1) Shipment time : once received your order ,we will proceed it quickly within 3~4 working days without problems .order can be cancled within these days ,otherwise we will reject to cancle the order ,because our items can not get back when in the process of shipment . we will inform our buyer if  there is a stock problems with the order and arrange a properly agreenment on the shipment schedule by email .

2) Shipment Methods : Client can choose suitable shipment methods based on your demand ,Post air parcel service or Express service , we will ship all orders strictly in according to the selected shipment methods by our customer . normally , Post parcel shipment time takes 7~60days depends on different countries serivce . and express takes 2~15days to the destination normally .

3) About Tracking number : Tracking number will be uploaded and will be informed by the registered email on each Friday ,please pay attention to your email later on for the tracking number update .

4) Quality Service : we will take a full responsibility for any defect product caused by our design and production problems ,warranty time is 12 months since the shipment date . but for any defect product caused by any wrong or slavery application from customers . we will not take the responsibility for that , because for this BMS product ,it do need some skills to make installation . please consult us in advance if you are not clearly with bms connection in the hope of avoid any mistakes of connection . if Buyer damaged the BMS , we can offer the free repairing service to our client , but client should take care of shipment cost .please know it kindly in advance . thanks

Please send email to this address for any questions james@lithiumbatterypcb.com, we will give you reply within 12hours without problems .

Additional information

Weight 0.2 kg
Dimensions 13 × 10 × 15 cm
Specification selection

13S Li ion 15A
