4S 12V 7S 8S 24V 13S 14S 48V 16S 21S 24S Lithium ion or Lifepo4 battery BMS with 300A Constant current

Description

Briefly descrition :

This 4S 8S 24S 16S Lifepo4  or 7S 13S 15S 16S  Li ion  Battery BMS with 300A constant current which can be applied on many fields ,such as low speed electric vehicle , solar engergy back up power etc  , it has the same  charge and discharge port , with NTC detection probe and highly detection precision on over-charge , overdischarge protection voltage .with second layer of over-current protection detection . with  low quiescent current to provide excellent protection performance for your battery system .

1) the Dimension of this Board is :175*98*25mm

2) Constant discharge current : 300A

3) with Same  charge and discharge port

4) Temperature detection protection : with

5) With high temperature detection  function

6) Application : for 4S 8S 24S 16S Lifepo4  or 7S 13S 15S 16S  Li ion  Battery

7) With Passive balance function

we can make it for different series application  , please contact us via this email : james@lithiumbatterypcb.com for wholesales project cooperation , we can design and manufacturing BMS strictly in according to your demand without problems .

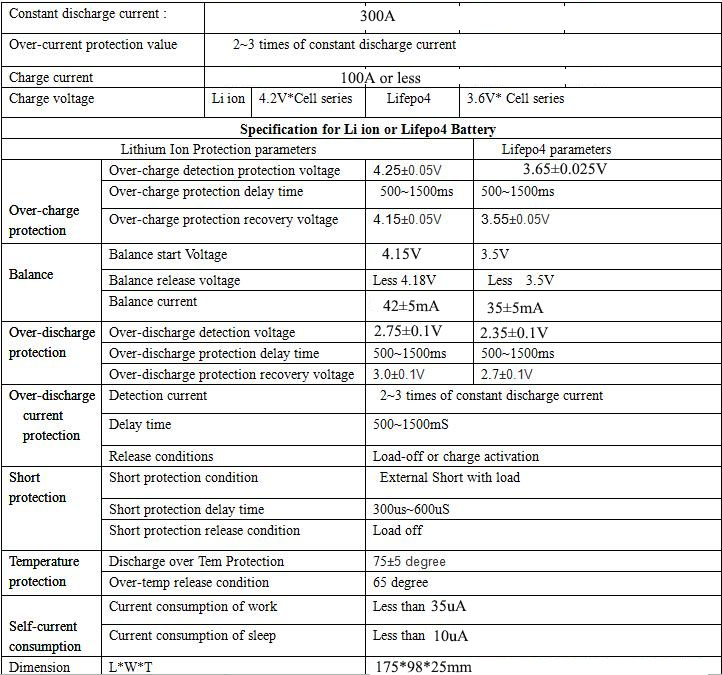

SPECIFICATION REFERENCE :

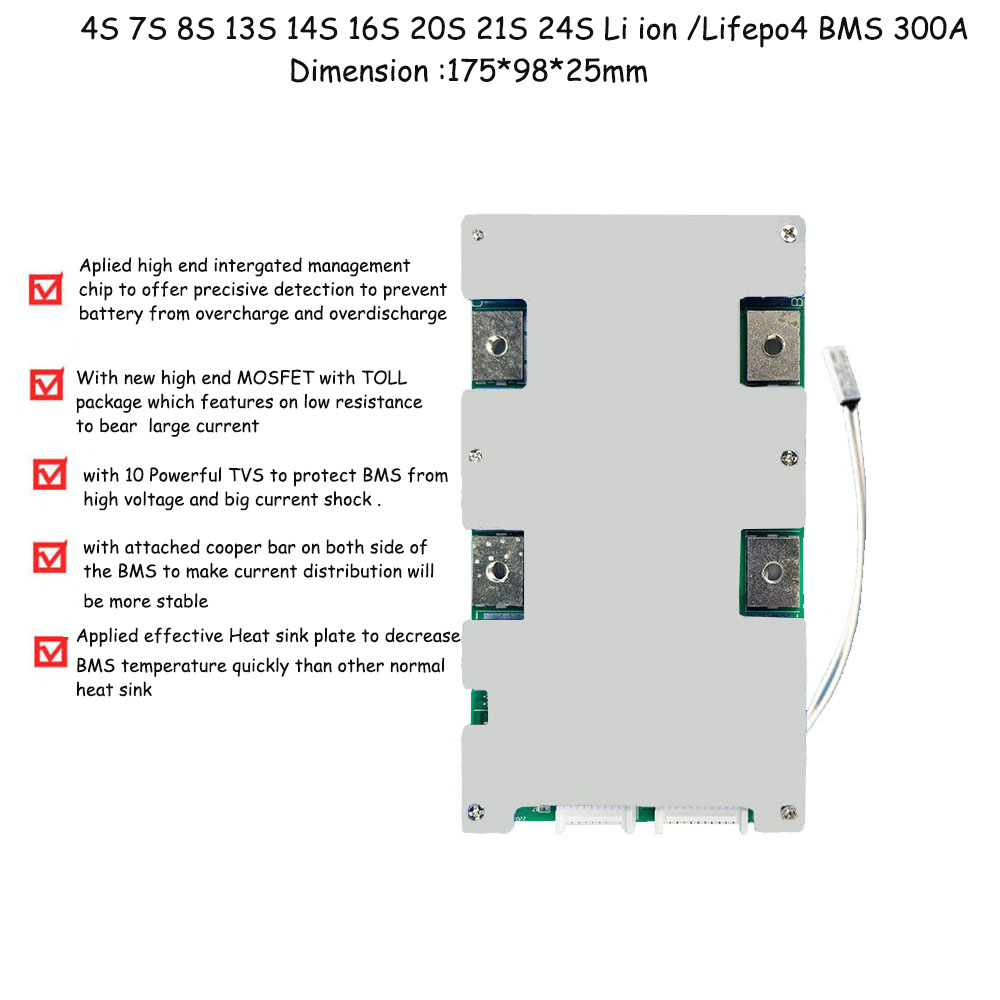

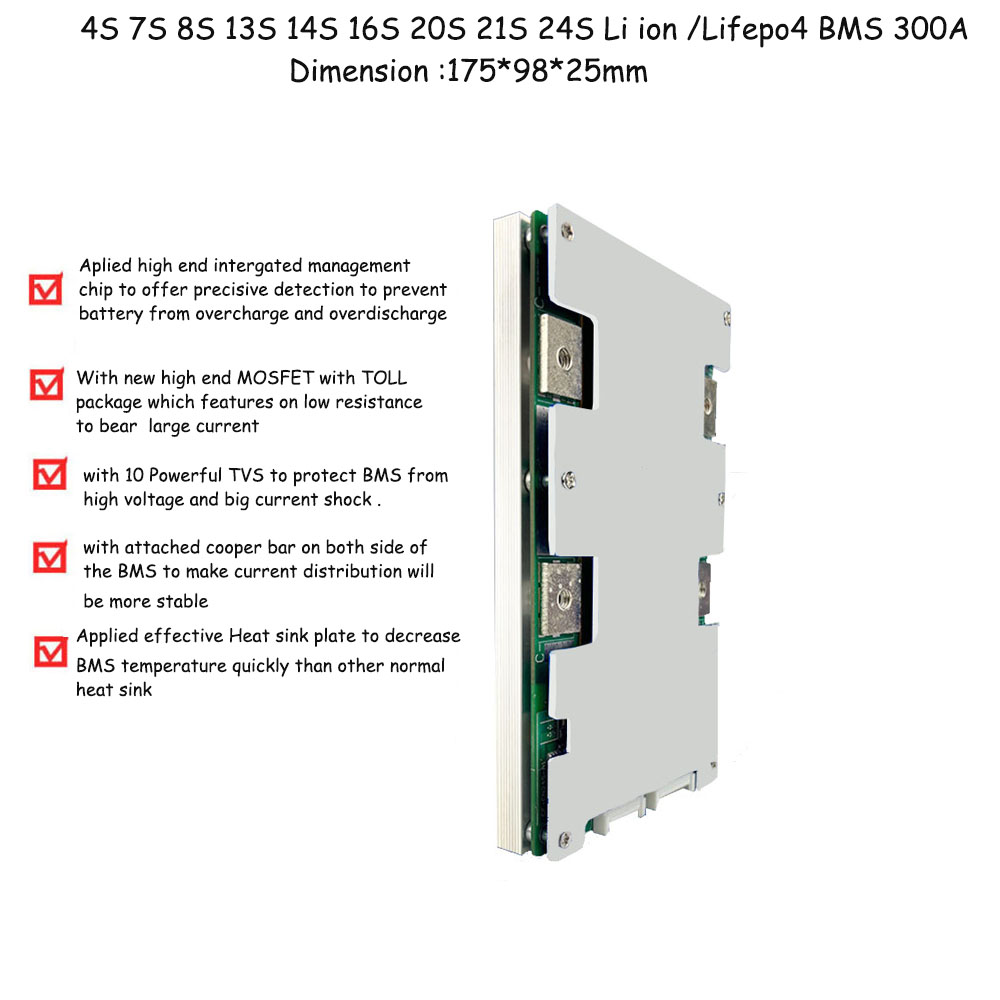

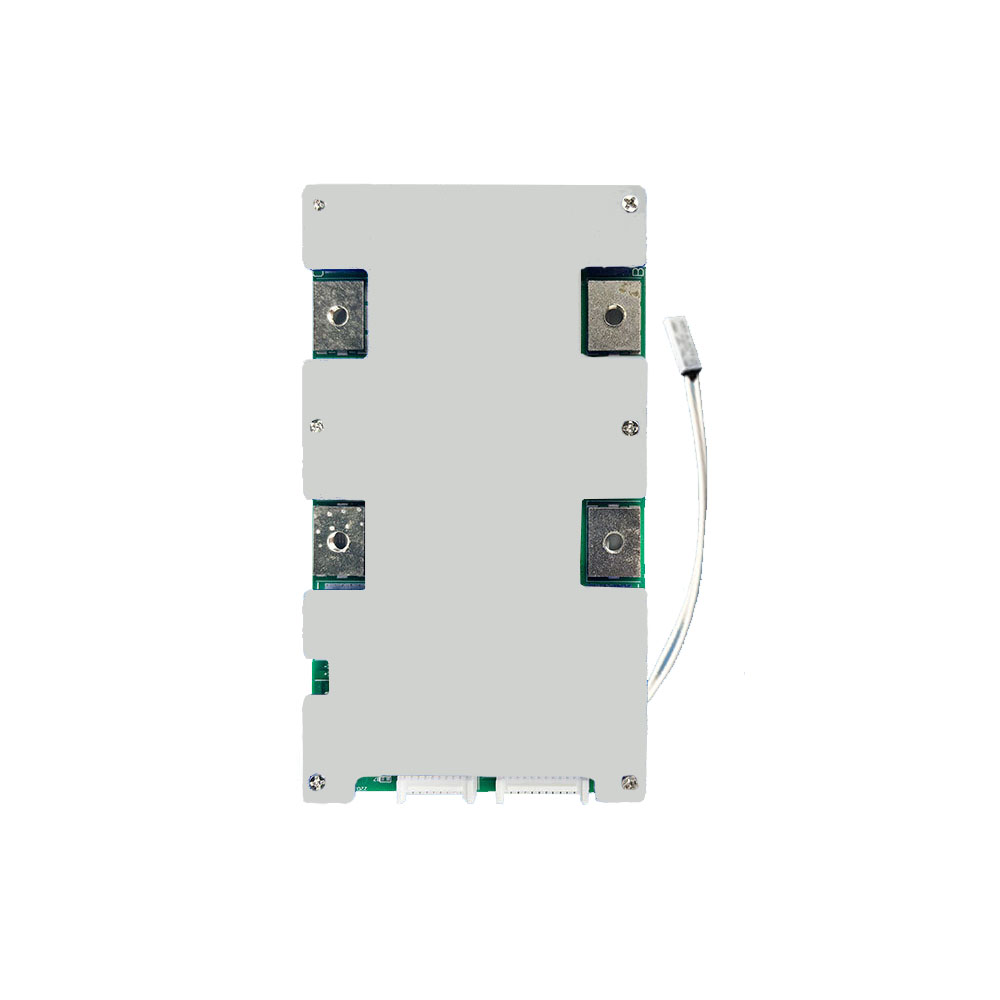

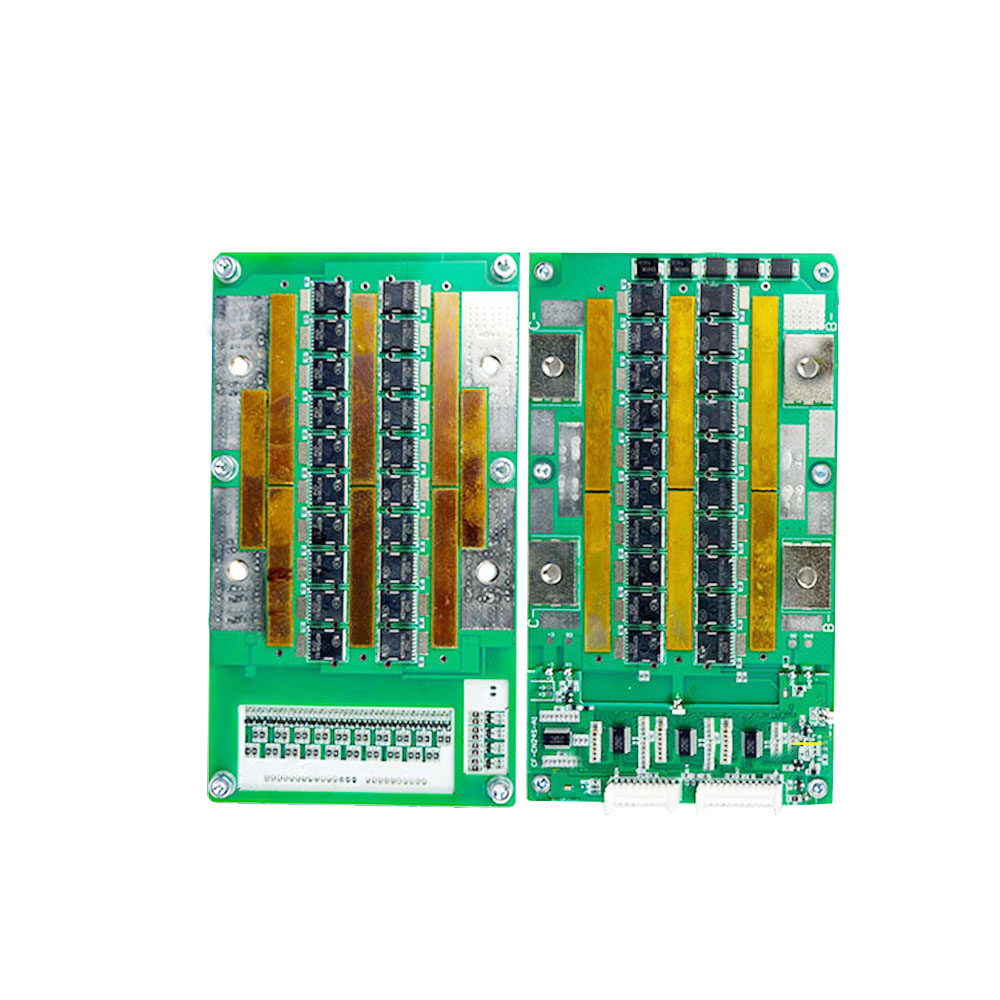

Photo display :

3) Import duty and tax cost will not covered with this cost I offered online . client should take full responsibility to make custom clearance and pay the import duty if necessary , we will offer support to our buyer to make sure the custom clearance will be smoothly .  we will not afford any extra fee for the import of our product on the buyer side .please contact us if you need any custom declaration demand on the cost , we will follow up your suggestions strictly without problems

4) Return policy : If Buyer does not need our items when got it , please contact us and return them in good conditions withoutproblems . buyer should pack them well and return goods to us in good situation by affording the shipment cost from buyer side to our side .

5) we will not explain how to make connection in details , it will be big jobs for us if we do it one by one ,we will offer connection diagram to the buyer , buyer just follow the instructions clearly to build the battery system . if you have some parts not clearly , you can contact us via this email : james@lithiumbatterypcb.com ,we will give you reply within 24hours except holiday seasons in china . please understand it kindly .
