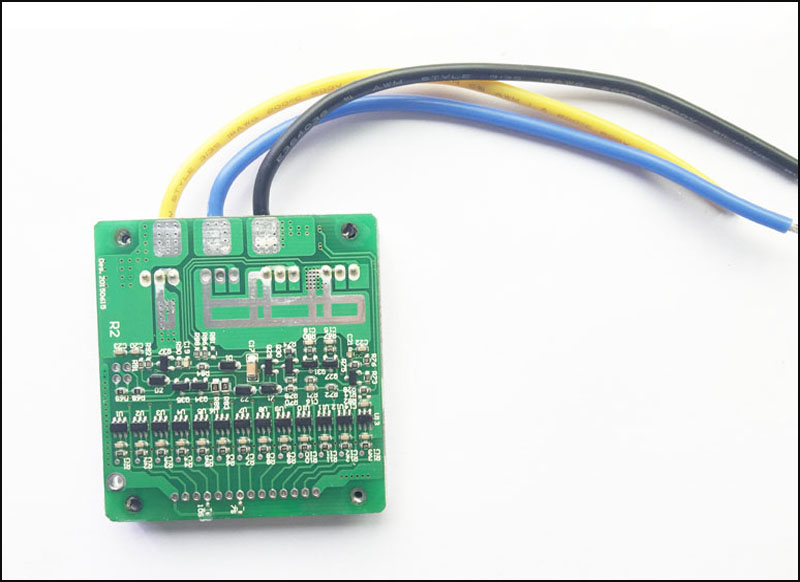

Frontside

Backside

For sample purchase

Basic specification introduction
Item Lithium Ion Specification Lifepo4 Specification
Dimension L*W*H=55*52*10mm
Suitable cell series For less than 13S cells Cells No available
Rated charge and discharge current 5A/20A No available
Over-charge protection votlage 4.25±0.025V No available
Over-discharge protection votlage 2.5±0.025V No Available
Over-current protection current 50A No available
Balance detection voltage 4.2±0.025V No Available
Balance current 40mA No Available
High tempeature protection with with
other’s specification reference
