Smart LCD Display Panel with UART or RS485 Communication and wire connection power display panel for smart BMS of 12V 24V 36V 48V 60V 72V Li ion or Lifepo4 Battery indicator

$9.60$35.60

This is PC communication module for UART or RS485 Communication which can fit  for our smart BMS to work  with cable connection to build communication,it can display all information with battery ,client can select suitable display panel basd on your battery application and disign

Description

This is PC communication module for UART or RS485 Communication which can fit  for our smart BMS to work  with cable connection to build communication,it can display all information with battery ,client can select suitable display panel basd on your battery application and disign

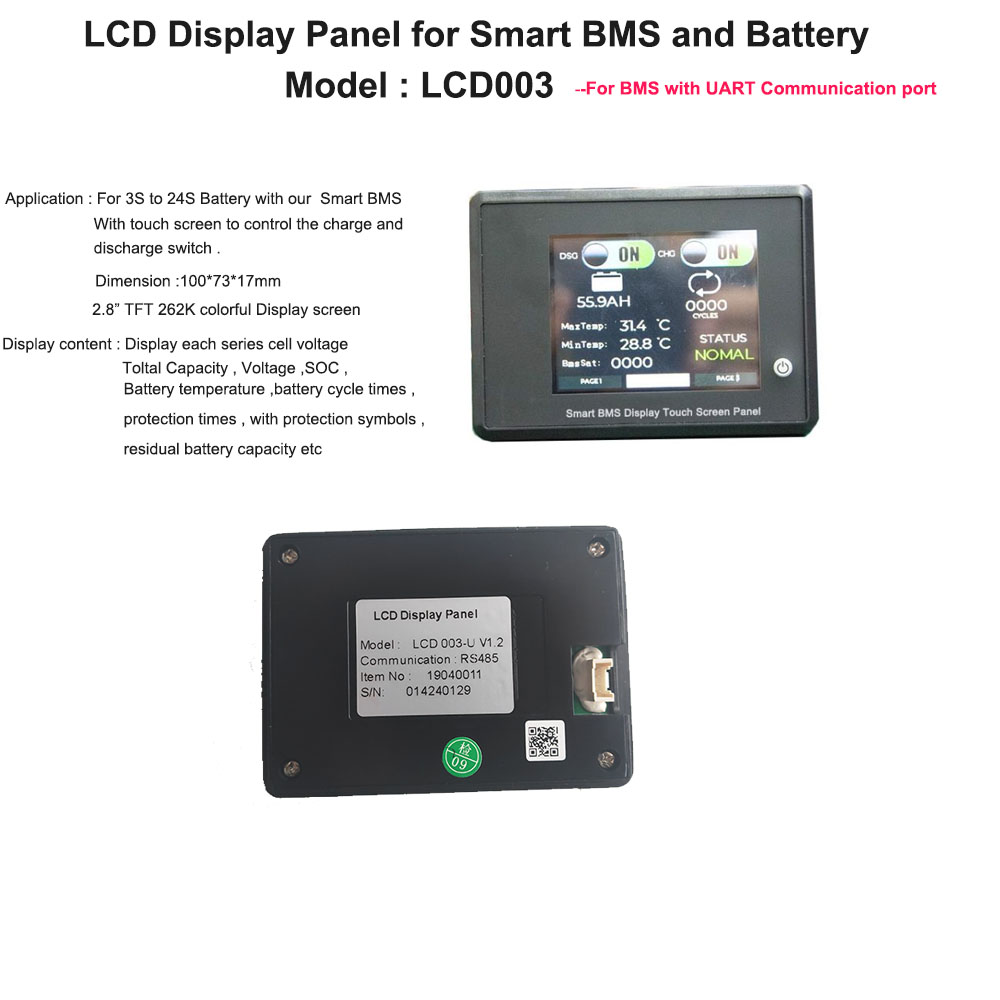

A. Touch screen Display Panel

his is LCD display panel of smart BMS with UART or RS485 communication for 3S ~24S lithium or lifepo4 battery monitoring .

Features And Characteristics :

  • Input voltage : 10~90V voltage  suitable for 3S~24S Li ion or Lifepo4 Battery

  • 2.8” TFT 262K colorful Display screen

  • with touch screen ,which can control the charge and dischargand turn the page up and down .

  • Dimension :100*73*17mm
  • Display the status of Charge and discharge mosfet ,and enable to turn off or turn on the discharge and charge switch .
  • Display voltage difference of the battery system .
  • Display the highest or lowest voltage with cells
  • Temperature display
  •  Totally voltage with whole battery pack
  • charge and discharge Current display with battery pack
  •  Capacity display with Battery pack in percentage .
  •  Display the voltage of each series cells ,battery cycle times , protection times , with protection symbols ,residual battery capacity etc





Smart BMS Display LCD touch screen panel

B: Little size LCD Display pANEL :



C.LCD Display Panel With Handbard fixing .

Transaction terms :
1) Shipment time : once received your order ,we will proceed it quickly within 3~4 working days without problems .order can be cancled within these days ,otherwise we will reject to cancle the order ,because our items can not get back when in the process of shipment . we will inform our buyer if  there is a stock problems with the order and arrange a properly agreenment on the shipment schedule by email .

2) Shipment Methods : Client can choose suitable shipment methods based on your demand ,Post air parcel service or Express service , we will ship all orders strictly in according to the selected shipment methods by our customer . normally , Post parcel shipment time takes 7~60days depends on different countries serivce . and express takes 2~15days to the destination normally .

3) About Tracking number : Tracking number will be uploaded and will be informed by the registered email on each Friday ,please pay attention to your email later on for the tracking number update .

4) Quality Service : we will take a full responsibility for any defect product caused by our design and production problems ,warranty time is 12 months since the shipment date . but for any defect product caused by any wrong or slavery application from customers . we will not take the responsibility for that , because for this BMS product ,it do need some skills to make installation . please consult us in advance if you are not clearly with bms connection in the hope of avoid any mistakes of connection . if Buyer damaged the BMS , we can offer the free repairing service to our client , but client should take care of shipment cost .please know it kindly in advance . thanks

Please send email to this address for any questions james@lithiumbatterypcb.com, we will give you reply within 12hours without problems .



Additional information

Weight 0.2 kg
Dimensions 13 × 10 × 15 cm
Accessory name

RS485 PC Module, UART PC Module, Bluetooth Module, LCD002 Display Panel with UART, LCD002 Display Panel with RS485, LCD003 Touch screen Panel with UART, LCD003 Touch screen Panel with RS485, LCD01-URTS-With sitting fixing, LCD01-URTS-With handbar fixing
