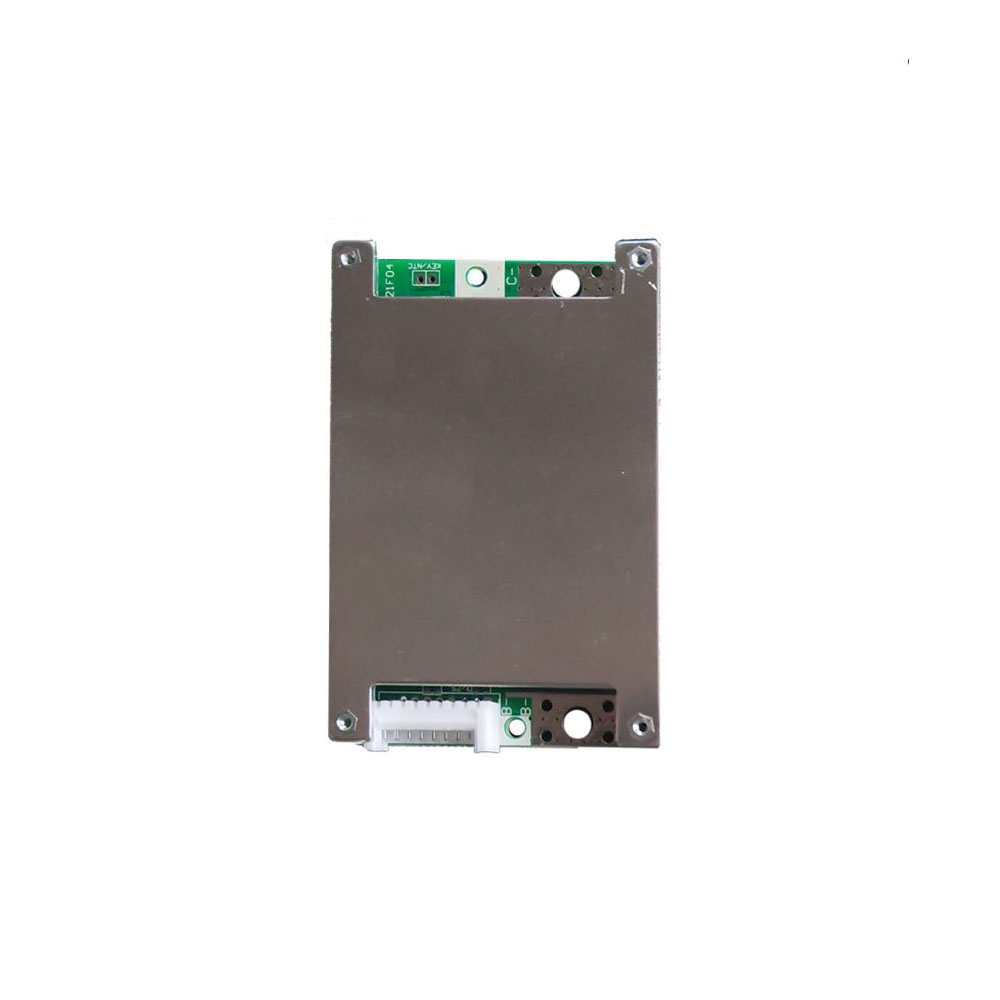

8S 24V Lifepo4 Battery BMS with 20A 30A 50A constant current and balance function

$17.20$19.20

Application :These models are work for  8S Lifepo4 bttery with constant current ranges from 20A to 50A based on user’s demand  .this  BMS has the same   charge and discharge port .
 Function :This BMS has such basic functions : over-charge protection ,over-discharge protection, over-current protection,short circuit protection . wire disconnection protection ,with Temperature protection   etc
 Advantages :This BMS was build with high quality of electronic components (High End integrated management  IC and high quality MOSFET ) ,simple structure design will let it have more stable quality working performance.
SKU: LLT-BM507 Category:

Description

Application :These models are work for  8S Lifepo4 bttery with constant current ranges from 20A to 50A based on user’s demand  .this  BMS has the same   charge and discharge port .
 Function :This BMS has such basic functions : over-charge protection ,over-discharge protection, over-current protection,short circuit protection . wire disconnection protection ,with Temperature protection   etc
 Advantages :This BMS was build with high quality of electronic components (High End integrated management  IC and high quality MOSFET ) ,simple structure design will let it have more stable quality working performance.

 Briefly Specification :
   Rated constant discharge current :  20A 30A or 50A ( client can select it in according your demand )
   Charge current  : 10A/20A/25A
   Standard Charge voltage :29.2V CC/CV
   overcharge detection voltage :3.65±0.025V
   Overcharge release voltage :3.45±0.025V
   over-discharge detection voltage :2.35V±0.1V
   Over-discharge release voltage :3.0±0.1V
   Balance current :35mA , Balance start voltage :3.45±0.025VV
   Over-current protection current :3 times of constant current
   Short Protection :Short protection condition : External Short , Release condition : Remove short
   Self-consumption current  in working process : less than 40uA
   Working temperature :-20~65°C
   Switch function : With
   Dimension :80*53*10mm



8S 24V Lifepo4 Battery BMS with 20A 30A 40A constant current
24V Lifepo4 BMS with 30A 40A 50A constant discharge current

please contact us for the detail connection instructions if you need , I will send it by email to you without problems

Transaction terms :
1) Shipment time : once received your order ,we will proceed it quickly within 3~4 working days without problems .order can be cancled within these days ,otherwise we will reject to cancle the order ,because our items can not get back when in the process of shipment . we will inform our buyer if  there is a stock problems with the order and arrange a properly agreenment on the shipment schedule by email .

2) Shipment Methods : Client can choose suitable shipment methods based on your demand ,Post air parcel service or Express service , we will ship all orders strictly in according to the selected shipment methods by our customer . normally , Post parcel shipment time takes 7~60days depends on different countries serivce . and express takes 2~15days to the destination normally .

3)we will not afford the Import duty cost on your side or any other extra fee , buyer has the obligation to do the custom clearance for the order you placed if needs . we will support you in any possible way to do the custom clearance if needs . please know it kindly in advance

4)About the declaration cost : for the item shipped by post air parcel with less than 2KG . we will report less than 20USD commercial value , and for the parcel by the express shipment ,we will report more than 30USD cost depend on total commercial value . please know it kindly in advance . if you have any suggestions ,please feel free to contact us by mail or other ways .

5) About Tracking number : Tracking number will be uploaded and will be informed by the registered email on each Friday ,please pay attention to your email later on for the tracking number update .

6) Quality Service : we will take a full responsibility for any defect product caused by our design and production problems ,warranty time is 12 months since the shipment date . but for any defect product caused by any wrong or slavery application from customers . we will not take the responsibility for that , because for this BMS product ,it do need some skills to make installation . please consult us in advance if you are not clearly with bms connection in the hope of avoid any mistakes of connection . if Buyer damaged the BMS , we can offer the free repairing service to our client , but client should take care of shipment cost .please know it kindly in advance . thanks

Please send email to this address for any questions james@lithiumbatterypcb.com, we will give you reply within 12hours without problems .







Additional information

Weight N/A
Specification Selection

8S Lifepo4 20A, 8S Lifepo4 30A, 8S Lifepo4 50A
